自行车载货笼-铝制

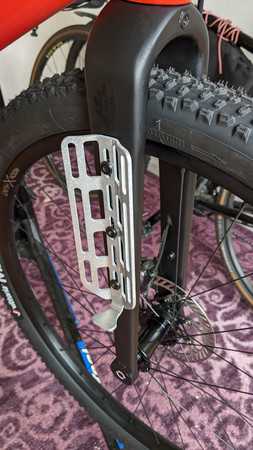

This cage is meant to be cut out of 1/8" thick 6061 Aluminum. If bending with a finger break, the bottom tab should be bumped to 90 degrees with 4-5 separate bends, because otherwise the 6061 will crack. You can obviously also use a more easily formable grade of aluminum, but 6061 does work well if you are careful. Cage 1.stp is missing some holes, but the angles of the bends are correct for referencecagev3.dxf对您在照片中看到的内容非常准确，并且似乎运行良好。
